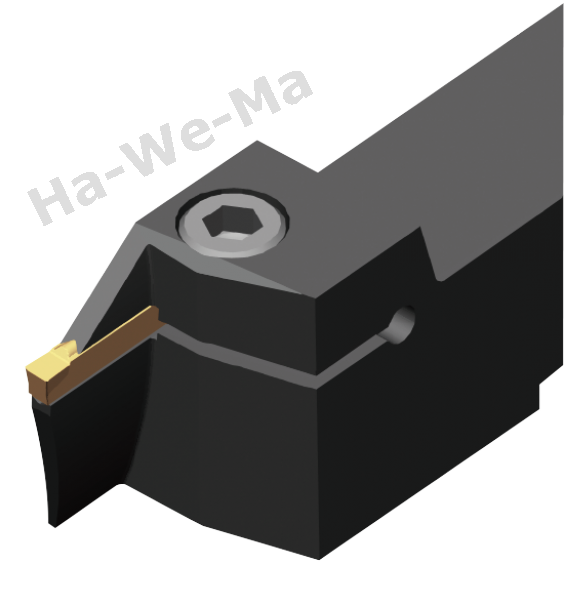

Rechter Monoblock-Halter P92 2 CXCBR zum Planstechen und Plandrehen für
Stechbreite 3 mm

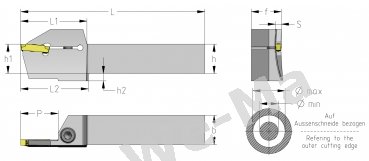

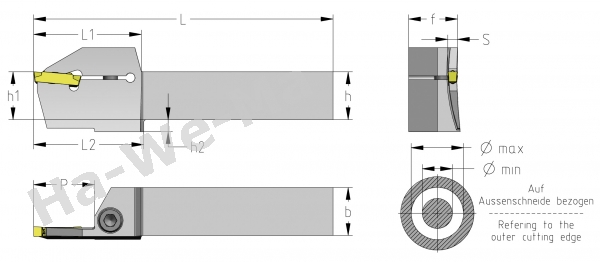

| Bezeichnung |
Ø min |
Ø max |
h |
h1 |
b |
f |
P |
S |
L |
L1 |
| P92 2 CXCBR 2020 K 30 25 |
25 |
30 |
20 |
20 |
20 |
20,5 |
15 |
3 |
125 |
35 |
| P92 2 CXCBR 2020 K 30 30 |
30 |
38 |
20 |
20 |
20 |
20,5 |
15 |
3 |
125 |
35 |
| P92 2 CXCBR 2020 K 30 38 |
38 |
48 |
20 |
20 |
20 |
20,5 |
15 |
3 |
125 |
35 |
| P92 2 CXCBR 2020 K 30 48 |
48 |
60 |
20 |
20 |
20 |
20,5 |
15 |
3 |
125 |
35 |
| P92 2 CXCBR 2020 K 30 60 |
60 |
75 |
20 |
20 |
20 |
20,5 |
22 |
3 |
125 |
43 |
| P92 2 CXCBR 2020 K 30 75 |
75 |
100 |
20 |
20 |
20 |
20,5 |
25 |
3 |
125 |
45 |
| P92 2 CXCBR 2020 K 30 100 |
100 |
200 |
20 |
20 |
20 |
20,5 |
25 |
3 |
125 |
45 |
| P92 2 CXCBR 2525 M 30 25 |
25 |
30 |
25 |
25 |
25 |
25,5 |
15 |
3 |
150 |
35 |
| P92 2 CXCBR 2525 M 30 30 |
30 |
38 |
25 |
25 |
25 |
25,5 |
15 |
3 |
150 |
35 |
| P95 2 CXCBR 2525 M 30 38 |
38 |
48 |
25 |
25 |
25 |
25,5 |
15 |
3 |
150 |
35 |
| P92 2 CXCBR 2525 M 30 48 |
48 |
60 |
25 |
25 |
25 |
25,5 |
15 |
3 |
150 |
35 |
| P92 2 CXCBR 2525 M 30 60 |
60 |
75 |
25 |
25 |
25 |
25,5 |
22 |
3 |
150 |
43 |
| P92 2 CXCBR 2525 M 30 75 |
75 |
100 |
25 |
25 |
25 |
25,5 |
25 |
3 |
150 |
45 |
| P92 2 CXCBR 2525 M 30 100 |
100 |
200 |
25 |
25 |
25 |
25,5 |
25 |
3 |
150 |
45 |
Für Plattenbreite S = 3mm
Lieferung OHNE Stechplatten.
